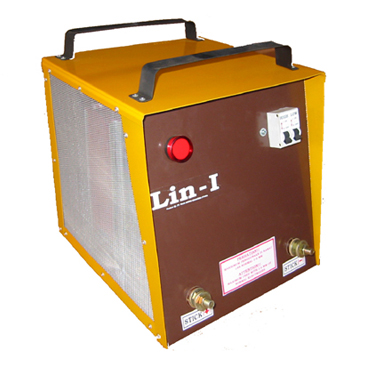

Lin - I STICK


This is a type of AC welding product which especially designed for light industry and household and with very economical use of current. Simplicity of its design and the small of its size make this remove to everywhere. In the work capacity which very productive can to support to full at the welding which needed.

Specification

Current Range (A)

60 160

Duty cycle (%)

60

No Load Voltage (V)

60 65

Load Voltage (V)

25 35

Electrodes diameter (mm)

2 2,6

Voltage (V)

220

Phase ( ~ )

1

Frequency (Hz)

50

Input power/standby (Kw)

2,5 4,5

Input power (KVA)

6,6

Input Cable (mm x 3)

7,5

Welding Cable (mm 2)

35

Dimension w x d x h (cm)

34 x 27,5 x 32,5

Weight (Kg)

± 21,5


Application

Light Fabrication
  Examples:
  - Job Shops and Maintenance
  - Housing and Office
  - Bicycle Manufacturing
  - Other Light Industry


Use normal welding electrode 2.6 mm, examples: AWS E - 6013
