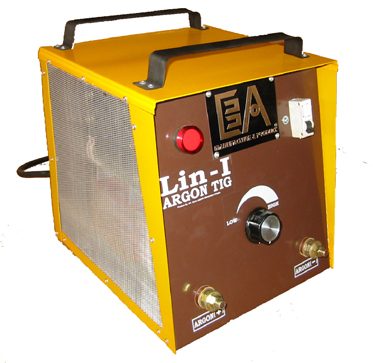

Lin - I ARGON TIG


Lin - I Argon TIG is DC type welding. This type to be more effective and efficient package TIG welding capability. With additional items of shielding gas argon and proper stick electrode, user should be able to perform a wider scope of welding task and TIG welding capability. This product is able to improve a higher welding quality by delivering a smoother welding performance with low sparkling flying metal that enable the welding application to be very implemented, and reducing arc wandering, especially for stainless steel material. This type even capable of supporting the prolonged welding work with very economical use of current.

Specification

Current Range (A)

25 100

Duty cycle (%)

60

No Load Voltage (V)

18 28

Load Voltage (V)

8 15

Electrodes diameter (mm)

0,8 - 1

Voltage (V)

220

Phase ( ~ )

1

Frequency (Hz)

50

Input power/standby (Kw)

0,3 2

Input power (KVA)

0,5 2,2

Input Cable (mm x 3)

7,5

Welding Cable (mm 2)

35

Dimension w x d x h (cm)

34 x 28 x 33

Weight (Kg)

± 21


Application

Light Fabrication
  Examples:
  - Job Shops and Maintenance
  - Housing and Office
  - Bicycle Manufacturing
  - Other Light Industry


Use normal welding electrode 2.6 mm, examples: AWS E - 6013
