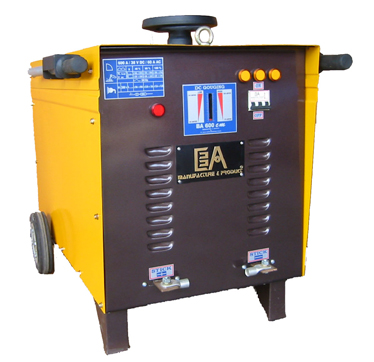

BA 600 cm – DC Gouging


The welding transformer BA 600 cm – DC Gouging is a type of welding transformer for DC welding capable of supporting work of very high capacity for welding Gouging and Sticks (common welding rod). This type of product is a product especially designed for heavy duty work giving the very satisfactorily results of welding and Gouging. In addition, the BA 600 cm has the usage capacity 80%, and compensating capacity especially designed such that beyond the work capacity included in the specifications make this product with a better capacity work. A quality feature of this product is usage intensity of current that much more economic, and makes its superior to the other products that available commercially.

Specification

Current Range (A)

200 – 600

Duty cycle (%)

80

No Load Voltage (V)

70 – 80

Load Voltage (V)

28 – 38

Electrodes diameter (mm)

3,2 – 5

Voltage (V)

380

Phase ( ~ )

3

Frequency (Hz)

50

Input power/standby (Kw)

0,6 – 1,3

Input power (KVA)

19 – 22,8

Input Cable (mm x 3)

20

Welding Cable (mm 2)

120

Dimension w x d x h (cm)

63 x 85 x 79

Weight (Kg)

± 237


Application

Heavy Fabrication
  Examples:
  - Mining Industry
  - Farm / Ranch
  - Heavy Construction
  - Heavy Industry


  - Metallic Artwork
  - Ship Building
  - Job Shops and Maintenance
  - Others heavy industry

Use normal welding electrode 5 mm at cable Mild Steel, examples:
AWS E – 6013
AWS E 308 L – 16
AWS E 316 L – 16
AWS E Ni Cu B
AWS E Ni Fe – C1
AWS E 9018 – 01
DIN 855 : E6 – 55
AWS E 7018
AWS E 312 - 16
AWS E 7016
AWS E8 – 200 CKz
AWS E Ni Fe – C1
AWS E Fe Cr AI
