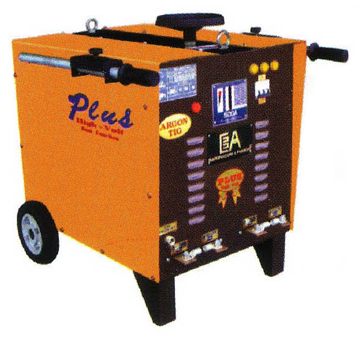

BA 500 A - DC Plus Hi - V (Dual Function)
The presence of BA 500 A – DC Plus Hi – V Dual Function brings a greater user friendliness for user through its ability in dual function; Stick and TIG welding process which can be applied in more variety working fields. This type of product is equipped by 3 adjusting terminals which consist of Low – Medium – High, hence the amount of output current intensity that is required can be adjusted based on the material to be welded and the type of welding electrode used (for all types of welding electrode). BA 500 A-DC Plus Hi-V is having an extra high welding capability with 500 A of current output and empowered by additional current compensation to support a high maintenance of the machine when it is confronted to heavy duty workload. With “high volt” system of implementation this type of welding machine is able to result in satisfied welding performance through its lighter continuous welding.
Specification
Current Range (A) |
50 - 500 |
Duty cycle (%) |
60 |
No Load Voltage (V) |
50 – 80 |
Load Voltage (V) |
33,2 |
Electrodes diameter (mm) |
1,5 – 4 |
Voltage (V) |
380 |
Phase ( ~ ) |
3 |
Frequency (Hz) |
50 |
Input power/standby (Kw) |
0,16 |
Input power (KVA) |
2 – 7,2 |
Input Cable (mm x 3) |
12 |
Welding Cable (mm 2) |
70 |
Dimension w x d x h (cm) |
78 x 64 x 78 |
Weight (Kg) |
± 200 |
Application
• Heavy Fabrication
Examples:
- Mining Industry - Ship Building
- Farm / Ranch - Metallic Artwork
- Construction - Industry |
• Light Fabrication
Examples:
- Job Shops and Maintenance
- Bicycle Manufacturing
- Others |
Use normal welding electrode 4 mm at cable Mild Steel, examples:
AWS E – 6013
AWS E – 7018
AWS 7018 – 1
AWS E 308 L – 16
AWS E 316 L – 16
AWS E Fe 5B
AWS E Fe M n – B
AWS E Ni Fe – C1
AWS E Ni CUB
DIN 855 : E6 – 55
|
DIN E8 – 200 CKz
AWS E 312 – 16
AWS E 9018 - 01
DIN 855 : E6 – E55
AWS E Fe Cr AI
DIN E3 – 50S
AWS Fe Mn – A
DIN 1855 : E23 – 200 CKz
DIN 1732 : SA1 Mn
|
|
|
