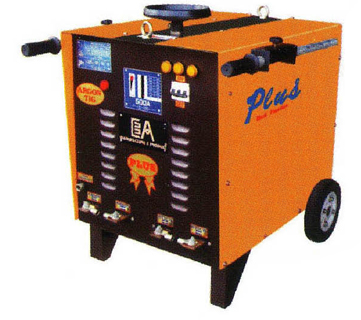

BA 500 A - DC Plus (Dual Function)
BA 500 Amp Plus DF is a DC type welding. It is an expansion of BA 500 AMP Plus to be a more effective and efficient package with STICK and TIG welding capability. Its simplicity in design allows the user to easily choose between Stick and TIG welding by connecting either to Stick or TIG output terminal on the machine. The Stick welding capability is exactly similar to its basic product which is BA 500 Amp Plus. While it is TIG welding capability is able to perform a higher working capacity as compared to BA 300 A DC Plus Dual Function. Through the presence of dual function products, welding process can be implemented into a wider scope of welding activities. The capability to support heavy duty workload within the specification, stable endurance, power compensation, and economical use of current are always being applied.
Specification
Current Range (A) |
50 500 |
Duty cycle (%) |
60 |
No Load Voltage (V) |
40 65 |
Load Voltage (V) |
33,2 |
Electrodes diameter (mm) |
1,5 4 |
Voltage (V) |
380 |
Phase ( ~ ) |
3 |
Frequency (Hz) |
50 |
Input power/standby (Kw) |
0,16 |
Input power (KVA) |
2 7,2 |
Input Cable (mm x 3) |
12 |
Welding Cable (mm 2) |
70 |
Dimension w x d x h (cm) |
78 x 64 x 78 |
Weight (Kg) |
± 188 |
Application
• Heavy - Moderate Fabrication
Examples:
- Mining Industry - Ship Building
- Farm / Ranch - Industry
- Construction |
• Light Fabrication
Examples:
- Job Shops and Maintenance
- Bicycle Manufacturing
- Others |
Use normal welding electrode 4 mm at cable Mild Steel, examples:
AWS E 6013
AWS E 308 L 16
AWS E 316 L 16
AWS E Ni Fe C1
AWS E Ni CUB
|
AWS E 9018 - 01
DIN 855 : E6 E55
AWS E Fe Cr AI
DIN 1855 : E23 200 CKz
AWS E NiFe - C1 |
|
|
