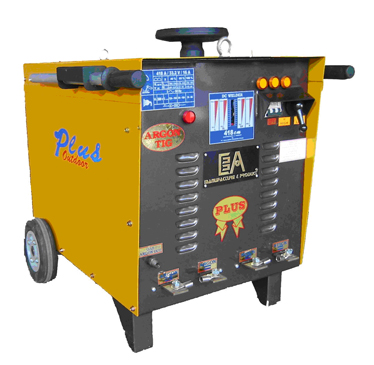

BA 418 cm – DC Outdoor
BA 418 cm – DC Outdoor Dual Function is a DC type welding and particularly for Aluminium welding. It is to be a more effective and efficient package with Stick and TIG welding capability. With additional items of shielding gas argon and proper Stick electrode, user should be able to perform a wider scope of welding task and TIG welding capability. This product is able to improve a higher welding quality by delivering a smoother welding performance with low sparkling flying metal that enable the welding application to be very implemented, and reducing arc wandering, especially for stainless steel material. Usage intensity of current that much more economic and especially designed for outdoor applications such that result in a freedom of use in outdoor works.
Specification
Current Range (A) |
30 – 418 |
Duty cycle (%) |
60 |
No Load Voltage (V) |
40 – 70 |
Load Voltage (V) |
12 – 33,2 |
Electrodes diameter (mm) |
1,5 – 4 |
Voltage (V) |
380 |
Phase ( ~ ) |
3 |
Frequency (Hz) |
50 |
Input power/standby (Kw) |
0,13 – 0,3 |
Input power (KVA) |
1,4, – 10,5 |
Input Cable (mm x 3) |
12 |
Welding Cable (mm 2) |
70 |
Dimension w x d x h (cm) |
80 x 66 x 75 |
Weight (Kg) |
± 170 |
Application
• Heavy - Light Fabrication
Examples:
- Mining Industry
- Farm / Ranch
- Heavy Construction
- Heavy Fabrication |
- Metallic Artwork
- Ship Building
- Job Shops and Maintenance
- Manufacturing |
Use normal welding electrode 4 mm, examples:
AWS E -– 6013
AWS E7018
AWS 7018 - 1
AWS E 308L - 16
AWS E316L - 16
DIN 8555 : E8 - 200 CKz
AWS E 9018 - 01
AWS Fe Mn - A
|
DIN 8555 L E1 - 300
DIN 8555: E1 - 300
DIN 8555: E 5 - 45r
DIN 855: E6 - 55
AWS E Fe 5B
AWS E Fe Cr AI
AWS E Ni - Ci
AWS E fe Mn - B |
|
|
