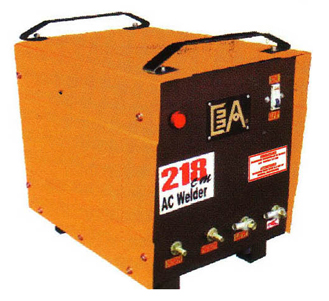

BA 218 cm - AC Welder
This is a smallest type of AC welding product. Simplicity of its design and the small of its size make this product easy remove to everywhere. This product has simple shape such that make its usage easier, and even maybe use as a part of reparation work in home. In addition, its welding results are satisfactorily because its superior capacity and work quality.
Specification
Current Range (A) |
80 - 218 |
Duty cycle (%) |
60 |
No Load Voltage (V) |
58 70 |
Load Voltage (V) |
28 30 |
Electrodes diameter (mm) |
2,6 3,2 |
Voltage (V) |
220 |
Phase ( ~ ) |
1 |
Frequency (Hz) |
50 |
Input power/standby (Kw) |
0,3 |
Input power (KVA) |
2,2 7,3 |
Input Cable (mm x 3) |
7,5 |
Welding Cable (mm 2) |
35 |
Dimension w x d x h (cm) |
48 x 34 x 46 |
Weight (Kg) |
± 46 |
Application
• light Fabrication
Examples:
- Job Shops and Maintenance
- Housing and Office
- Other Light Industry |
|
Use normal welding electrode 2 mm, examples: AWS E 6013 |
|
