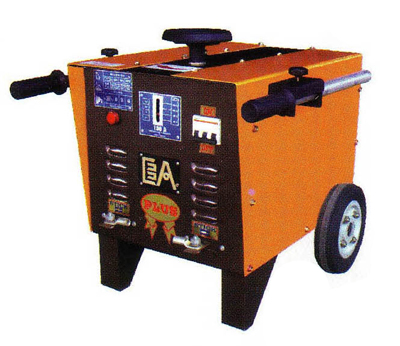

BA 190 A - DC Plus
BA 190 A – DC Plus is a type of DC welding. The simplicity of its size allowing easier removal form one welding site to another. The size does not reduce the work quality of this product, but always capable of giving the satisfactorily welding results according to the work capacity specified. This type even capable of supporting the prolonged welding work with very economical use of current.
Specification
Current Range (A) |
43 – 190 |
Duty cycle (%) |
60 |
No Load Voltage (V) |
60 |
Load Voltage (V) |
20 – 28 |
Electrodes diameter (mm) |
1,5 – 3,2 |
Voltage (V) |
380 |
Phase ( ~ ) |
3 |
Frequency (Hz) |
50 |
Input power/standby (Kw) |
0,2 |
Input power (KVA) |
2,63 – 5,92 |
Input Cable (mm x 3) |
7,5 |
Welding Cable (mm 2) |
50 |
Dimension w x d x h (cm) |
56 x 48 x 57 |
Weight (Kg) |
± 67 |
Application
• Light Fabrication
Examples:
- Construction
- Housing and Office |
- Light Industry
- Others |
Use normal welding electrode 2,6 mm, examples : AWS E – 6013
|
|
